Empowering Precision and Reliability in Smart Cooling Control

In the era of Industry 4.0 and deep integration with IoT technologies, the intelligent and remote control of chiller systems has become a key driver in enhancing production efficiency and management accuracy.

As a professional manufacturer in temperature control and pneumatic equipment, Beijing WIIP has developed the WIIP B90 Remote Controller, an industrial-grade solution designed to deliver “precise functional replication, stable transmission reliability, and flexible operation modes.” The B90 provides a robust and intelligent remote-control platform for industrial chillers.

Core Features

1. Precise Functional Replication — 1:1 Synchronized HMI Control

The B90 Remote Controller replicates the complete functionality of the chiller’s HMI, achieving 1:1 synchronization for key operations such as parameter display, mode switching, and parameter adjustment.
Its control logic mirrors the local HMI exactly, ensuring real-time temperature display, dynamic status feedback, and fine parameter tuning—eliminating the common “function gaps” and “status deviations” found in traditional remote-control systems.
This design guarantees identical precision between remote and local operations, meeting the demanding accuracy requirements of industrial production.

Compared with traditional Windows-based software solutions, the B90 offers significant advantages:

Shorter development cycles – eliminates the need for complex software programming and driver development, reducing project time by over 50%;

High stability – free from system crashes or virus issues, with no need for constant updates;

Strong compatibility – directly compatible with the unit’s HMI without concerns about future system upgrades, minimizing adaptation costs.

2. Reliable Transmission — Industrial Optical Fiber System for Long-Distance Stability

To meet the challenges of harsh industrial environments, the B90 Remote Controller adopts a fully industrial-grade optical fiber transmission system, ensuring both performance and durability.

Single-mode, single-core fiber design:
Compared with multi-mode fibers, single-mode fibers offer lower transmission loss and higher bandwidth. Even over distances exceeding 20 km, signals remain stable, and the simplified single-core structure reduces wiring complexity.

Industrial armored protection:
The fiber cable features armored industrial-grade sheathing with resistance to compression, abrasion, extreme temperatures (-40°C to +85°C), and chemical corrosion. This allows direct installation in environments prone to mechanical impact, oil exposure, or outdoor weather.

Industrial-grade transceivers:
Equipped with transceivers supporting wide voltage input (12V–36V DC) and enhanced EMC protection (industrial level II or higher), ensuring low-latency, lossless communication even near high-voltage equipment or large motors.

Whether the chiller is installed in a remote workshop, outdoor area, or high-interference industrial setting, the B90 maintains stable, uninterrupted control communication.

3. Flexible Operation — Multi-Screen Integration for Efficient Management

Designed to adapt to varying industrial layouts and equipment quantities, the B90 Remote Controller offers four configuration types, each integrating multiple displays into a single console for centralized control—no additional hardware modification required.

Type 1 – Single Unit Control:
Integrated 10-inch screen for precise monitoring of a single chiller, displaying key parameters such as temperature and system curves clearly and efficiently.

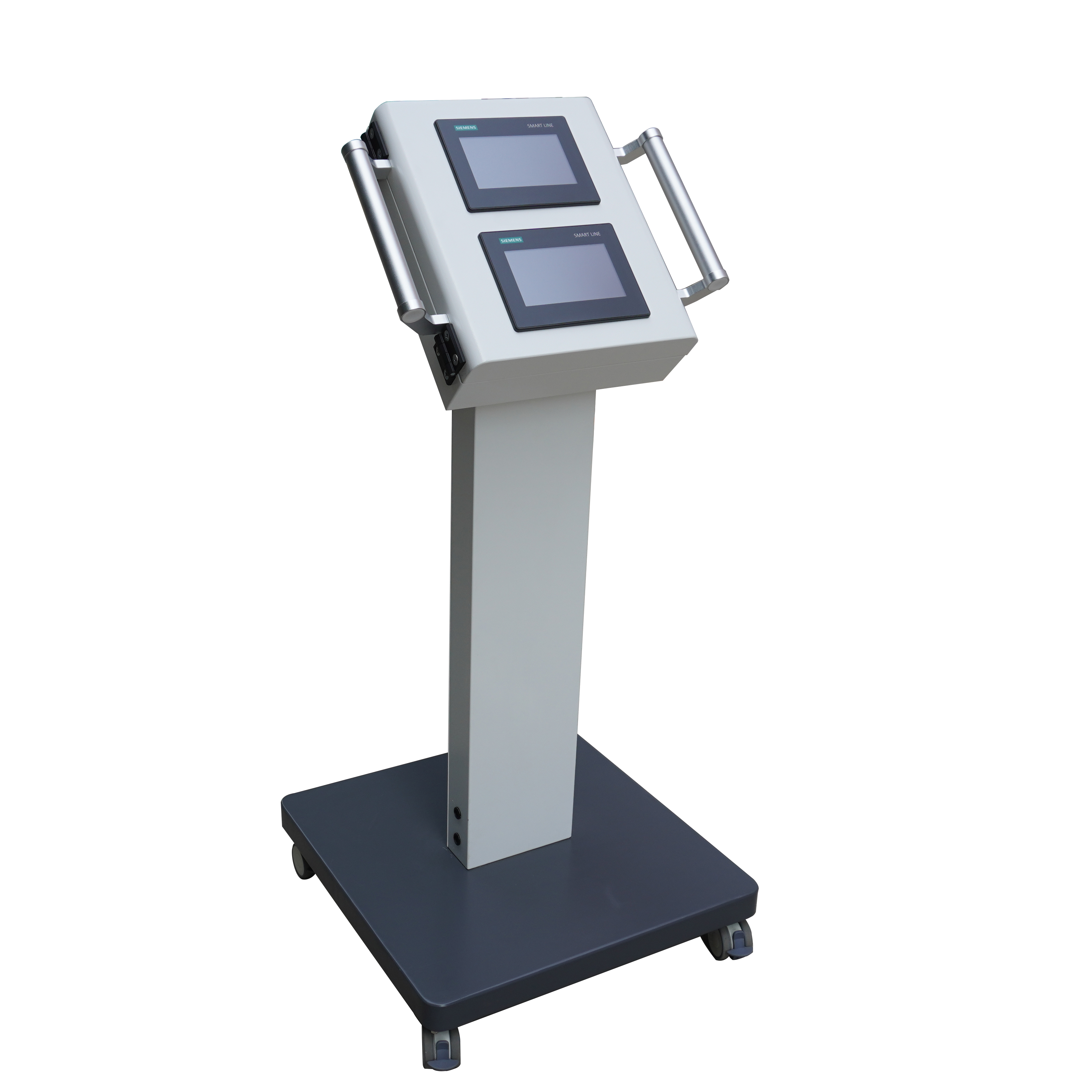

Type 2 – Dual Unit Control:
Single console with two independent 7-inch screens, enabling simultaneous management of two chillers in a compact layout.

Type 3 – Triple Unit Control:
Console with three 7-inch screens, each corresponding to one chiller. Independent display design avoids confusion and enhances coordination efficiency.

Type 4 – Quad Unit Control:
Single console with four 7-inch screens for unified control of up to four chillers—ideal for dense production lines, maximizing space utilization.

These four configurations cover a wide range of industrial applications, balancing space efficiency and operational convenience.

The WIIP B90 Remote Controller combines precise HMI replication, industrial-grade optical fiber transmission stability, and flexible control configurations to build a truly industrial-standard remote control system for chillers.

Fully aligned with the evolution of intelligent equipment management in the Industry 4.0 era, the B90 significantly enhances operational efficiency and management precision, delivering a reliable technological foundation for modern cooling system management.

For customized solutions tailored to your production setup — including equipment quantity, workshop layout, and transmission distance — please leave a comment or contact us for professional technical support.
